Summary

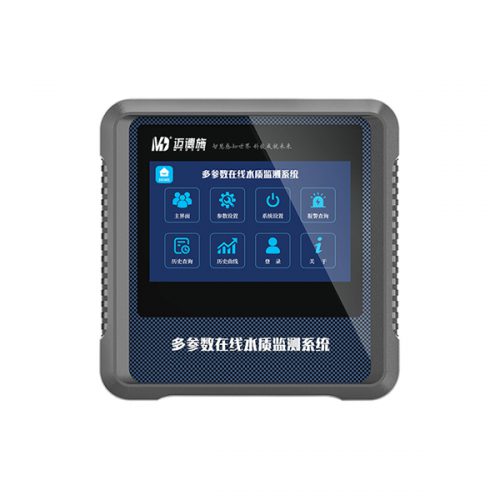

On-line multi-parameter detector can realize the simultaneous online monitoring of multiple parameters with optional sensors according to customer requirements, including temperature /PH/ORP/ conductivity/dissolved oxygen/turbidity/sludge concentration/chlorophyll/blue-green algae /UVCOD/UVNO3/ ion-ammonia nitrogen/transparency/residual chlorine and other parameters.It is widely used in sewage plant, tap water plant, water station, surface water, industrial and other fields of water quality monitoring.
The parameter display of software interface in detector is self-adaptive，and the operation interface menu is easy to set for user operation. Turn the sensor into plug&play and make electrode installation and replacement quick and convenient. Multiple data transmission modes are available, and data storage and export functions are available.
The main features
Up to five of our sensors can be connected at the same time to improve integration and reduce operation and maintenance costs.
The sensor has strong versatility and all digital sensor interfaces are universal. Analog sensors can be configured with different modules according to different sensor types.
Turn the sensor into plug&play and make electrode installation and replacement quick and convenient.
It has 4~20mA, Modbus RS485, wireless transmission and other data transmission modes.
It uses a 4.3-inch color touch screen with simple operation interface , convenient operation, reliable system, low maintenance.
It has the function of data storage and curve display to master the dynamic change of monitoring parameters.
Automatically prompt error and alarm information, and realize the alarm signal upload.
The sensor has three levels of management rights.
Wall mount/panel mount is available.
Supports wireless data transmission modules.
| Display output |
4.3 inch touch screen，with LED strong backlight, operating under direct sunlight is available |
| Power supply |
alternating current supply:85-50ovAC
direct current supply:9~36vDc |
| Output |
Standard equipped with 6-channel 4-20mA analog output, program set response parameters and response value |
| Relay |
4-channel relay，program set response parameters and response values |
| Communication protocol |
The standard MODBUS RS485 communications function
Real-time transmission of measured value optional wireless communication mode:4G:UDP/TCP NB:UDP |
| Main material |
PA66+GF25+FR(loam cake), aluminium alloy dusting（lower cabinet) |
| Storage temperature |
-20~70℃ |
| Operating temperature |
-15~60℃ |
| Protection grade |
IP65/NEMA4X |
| Dimension |
260mm*200mm*123.3mm(Length*width*height) |
| Weight |
About 2.0 KG |
