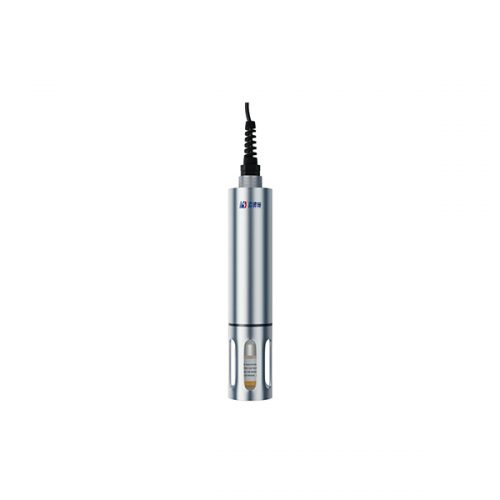

Digital ozone sensor

Product overview

The ozone measurement method is to maintain a stable potential potential at the electrode measurement end, and different measured components produce different current intensity at this potential. It consists of two platinum electrodes and a reference electrode in a microcurrent measurement system. Ozone is consumed in the water sample flowing through the measurement electrode, so the water sample must be kept continuously flowing through the measurement electrode.

characteristic:

Simple structure, easy to clean and replace the measurement electrodes with steady flow speed.

Very stable zero-point performance, making the measurement accurate and reliable

parameter:

Electrodes: two platinum rings

Reference electrode: gel with annularj contact

Material: glass

Cable length: 5m three-core silver-plated cable

Work pressure: 3bar

Size: 120mm below thread, 12mm diameter
