Product characteristics
■ Double light path: 245nm and 550nm, can effectively eliminate the turbidity and color influence.
■ UV absorption method to determine organic matter (such as COD TOC, etc.), no reagent, sample without digestion processing. Fast response speed, with a 10-second response (T90).
■ Using the cold light source UVLED, long life, small drift. Using filter and PD receiver, no consumables, long life, small drift.
■ Standard automatic cleaning brush, can effectively prevent biological pollution.
■ With independent property rights and stable key device supply chain, the products have extremely high cost performance.

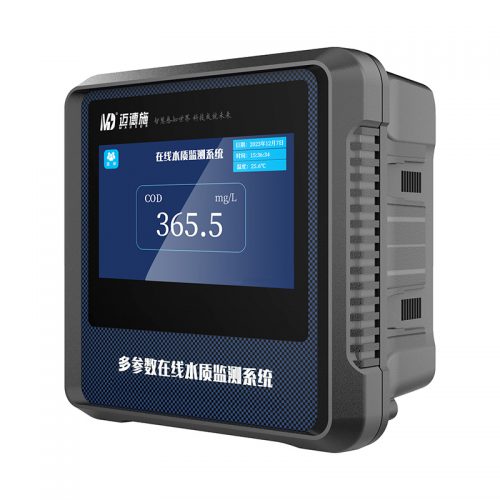

Controller parameters
| Model |
MDS-KP500 |
| Display |
4.3 inches, 480*800 resolution, 262K color, IPS screen, wide viewing Angle, with backlight |
| |
Capacitive touch screen with three protection processes (moisture-proof, mildew proof, salt spray proof) |
| Display size |
95.0mm*53.9mm |
| Measuring range |
-99999.0000~99999.0000 |
| Password Protection |
The default password is 0000 |
| Compatible sensor |
Digital sensor |
| Mounting method |
Disk mounting (with chassis), wall-mounted mounting |
| Alarm relay |
2 relays can set high and low alarm |
| Current output |
2 isolated 4-20mA, maximum load 750Q, can be set |
| Communication port |
RS485 Modbus RTU |
| Memory backup |
All user Settings are stored indefinitely in EERPOM |
| historical data |
The storage capacity of 8000 points is recorded at a 5-minute interval |
| Operating environment |
-10~+50℃,0~95% relative humidity, no condensation |
| Storage environment |
-20 to +70 ° C,0 to 95% relative humidity, non-condensing |
| The power supply |
12V±10% |
| Power consumption of the instrument |
less than 6W |
| Instrument size |
144X145X85(mm) |
| Protection class |
IP65 |
