The selective electrode of the online copper detector is an effective method to measure the content of copper ions in samples. Copper ion-selective electrodes are also often used in on-line instruments, such as industrial on-line copper ion content monitoring.
Copper ion selective electrode, with the advantages of simple measurement, fast and accurate response, can be used with PH meter, ionometer and on-line copper ion analyzer, and can also be used in the ion selective electrode detector of electrolyte analyzer and flow injection analyzer.
| specification： |
| measuring range |
0.064…6400ppm |
| pH range |
2…6pH |
| resolution ratio |
0.001 ppm |
| measurement accuracy |
±5%FS |
| TEMP measuring range |
0…60℃ |
| slope |
56±4mV(25℃) |
| sensing element |
solid membrane |
| reproducibility |
±4% |
| membrane resistance |
＜50MΩ |
| output |
4…20 mA（Adjustable/three-wire system） |
| Current Accuracy |
1%FS |
| output load |
＜750Ω |
| data communication |
Rs485(MODBUS-RTU) |

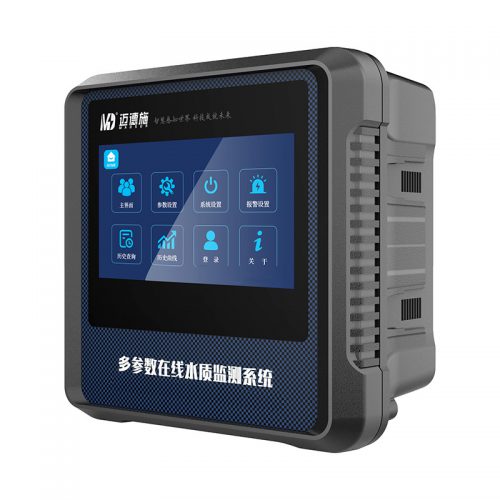

Controller parameters
| Model |
MDS-KP500 |
| Display |
4.3 inches, 480*800 resolution, 262K color, IPS screen, wide viewing Angle, with backlight |
| |
Capacitive touch screen with three protection processes (moisture-proof, mildew proof, salt spray proof) |
| Display size |
95.0mm*53.9mm |
| Measuring range |
-99999.0000~99999.0000 |
| Password Protection |
The default password is 0000 |
| Compatible sensor |
Digital sensor |
| Mounting method |
Disk mounting (with chassis), wall-mounted mounting |
| Alarm relay |
2 relays can set high and low alarm |
| Current output |
2 isolated 4-20mA, maximum load 750Q, can be set |
| Communication port |
RS485 Modbus RTU |
| Memory backup |
All user Settings are stored indefinitely in EERPOM |
| historical data |
The storage capacity of 8000 points is recorded at a 5-minute interval |
| Operating environment |
-10~+50℃,0~95% relative humidity, no condensation |
| Storage environment |
-20 to +70 ° C,0 to 95% relative humidity, non-condensing |
| The power supply |
12V±10% |
| Power consumption of the instrument |
less than 6W |
| Instrument size |
144X145X85(mm) |
| Protection class |
IP65 |
