Nitrite ion-selective electrode is an effective method to measure the nitrite ion content in a sample. Nitrite ion-selective electrodes are also often used in on-line instruments, such as industrial on-line monitoring of nitrate ion content.
Nitrite ion-selective electrode, with the advantages of simple measurement, fast and accurate response, can be used with PH meter, ionometer and on-line nitrite ion analyzer.
Application:
nitrite ion selection electrode method for measuring nitrite concentration in solid waste extraction solution; nitrite ion selective electrode method for measuring nitrite ions in vegetables, preserved products and other agricultural products.
Sensing technical parameter
| gradient |
56 ± 3mv |
| repetitiveness |
± 2% |
| disturb |
Acetate, fluoride ion, chloride ion, nitrate, sulfate, etc |
| temperature range |
0-50°C |
| pressure limit |
0-2 atm |
| response speed |
In 30 seconds to reach a 90% response |
| lay in |
Long term: dry storage; short term: stored in nitrogen oxide solution |
| measuring range |
0.2ppm –2200ppm |
| PH range |
1.1-1.7 |
| output impedence |
20-50MΩ |
| Maintenance and cleaning |
With a diluted nitrogen oxide standard solution, the optimal PH range: PH 4.5-PH 8 |
| temperature compensation |
10k/22k//2.252K/PT1000/PT100 Optional |
| on line operation |
Yes, adjust the PH value |
| material quality |
PMMA+PVC |
| connect |
terminal |
| apply |
In the air quality and accumulation of cargo monitoring |

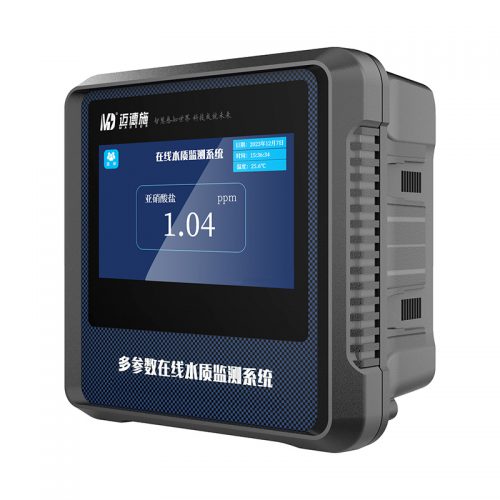

Controller parameters
| Model |
MDS-KP500 |
| Display |
4.3 inches, 480*800 resolution, 262K color, IPS screen, wide viewing Angle, with backlight |
| |
Capacitive touch screen with three protection processes (moisture-proof, mildew proof, salt spray proof) |
| Display size |
95.0mm*53.9mm |
| Measuring range |
-99999.0000~99999.0000 |
| Password Protection |
The default password is 0000 |
| Compatible sensor |
Digital sensor |
| Mounting method |
Disk mounting (with chassis), wall-mounted mounting |
| Alarm relay |
2 relays can set high and low alarm |
| Current output |
2 isolated 4-20mA, maximum load 750Q, can be set |
| Communication port |
RS485 Modbus RTU |
| Memory backup |
All user Settings are stored indefinitely in EERPOM |
| historical data |
The storage capacity of 8000 points is recorded at a 5-minute interval |
| Operating environment |
-10~+50℃,0~95% relative humidity, no condensation |
| Storage environment |
-20 to +70 ° C,0 to 95% relative humidity, non-condensing |
| The power supply |
12V±10% |
| Power consumption of the instrument |
less than 6W |
| Instrument size |
144X145X85(mm) |
| Protection class |
IP65 |
