Product profile:
Residual chlorine / chlorine dioxide sensor, using the advanced constant voltage principle, is used to measure the residual chlorine / chlorine dioxide in the water body. This method utilizes the application of a stable potential potential between the polarized electrode and the reference electrode, and different measured components produce different current strengths at this potential. The instrument calculates the concentration of the measured components by collecting and analyzing the current signal.The residual chlorine / chlorine dioxide electrode is simple in structure and easy to clean and replace. Meanwhile, the electrode does not need to replace the diaphragm and reagents, and the maintenance is simple to ensure the stability, reliability and accuracy of the instrument for long-term work.
Typical applications:
For residual chlorine / chlorine dioxide measurement in water plant, drinking water distribution network and swimming pool.
| Sensing technical parameter |
| theory |
Constant Voltage Tracking-CVT |
| measuring range |
0-2mg/L,0-20mg/L (choosable) |
| calibration |
two geg metrod |
| slope |
78%-155% |
| temperature compensation |
Manual or automatic temperature compensation |
| temperature coefficient |
2%℃ |
| Sample PH range |
5~8 |
| Velocity requirement |
30-60 L/h |
| working temperature |
0 to 50 ° C (no freezing) |
| electrode size |
Diameter 13.5mm* Length 178.5mm |
| Mounting thread size |
PG13.5 |
| Electrodes |
316 stainless steel housing |
| cable length |
Standard cable length: 5m, extendable 20m |

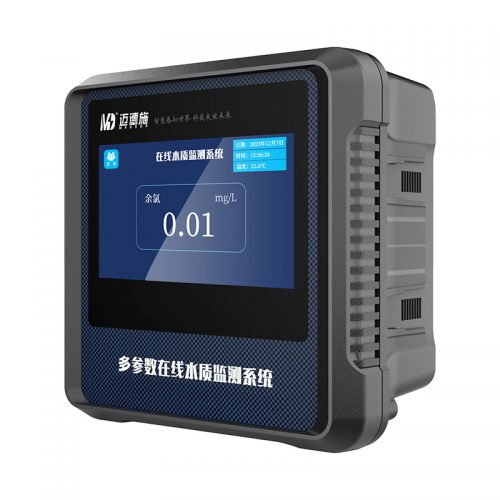

Controller parameters
| Model |
MDS-KP500 |
| Display |
4.3 inches, 480*800 resolution, 262K color, IPS screen, wide viewing Angle, with backlight |
| |
Capacitive touch screen with three protection processes (moisture-proof, mildew proof, salt spray proof) |
| Display size |
95.0mm*53.9mm |
| Measuring range |
-99999.0000~99999.0000 |
| Password Protection |
The default password is 0000 |
| Compatible sensor |
Digital sensor |
| Mounting method |
Disk mounting (with chassis), wall-mounted mounting |
| Alarm relay |
2 relays can set high and low alarm |
| Current output |
2 isolated 4-20mA, maximum load 750Q, can be set |
| Communication port |
RS485 Modbus RTU |
| Memory backup |
All user Settings are stored indefinitely in EERPOM |
| historical data |
The storage capacity of 8000 points is recorded at a 5-minute interval |
| Operating environment |
-10~+50℃,0~95% relative humidity, no condensation |
| Storage environment |
-20 to +70 ° C,0 to 95% relative humidity, non-condensing |
| The power supply |
12V±10% |
| Power consumption of the instrument |
less than 6W |
| Instrument size |
144X145X85(mm) |
| Protection class |
IP65 |
