  • MDS-056A-BZP Portable 5 parameter meteorological instrument

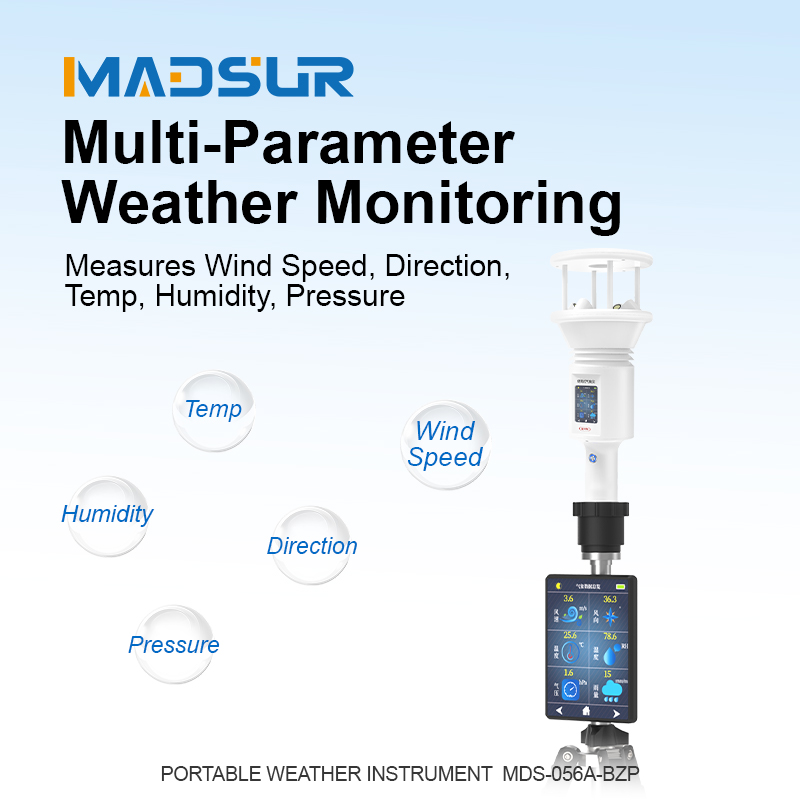

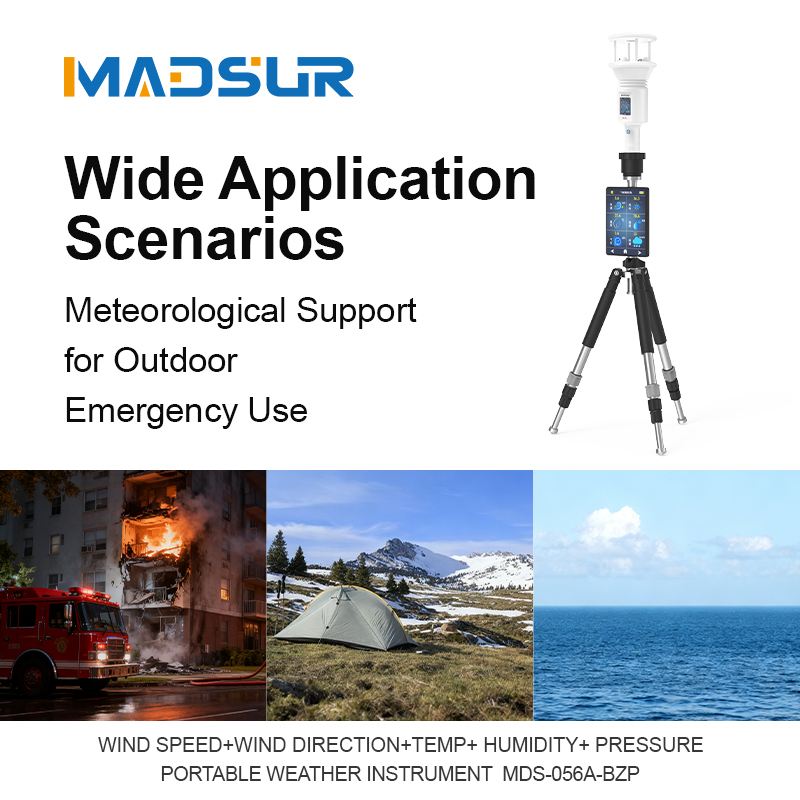

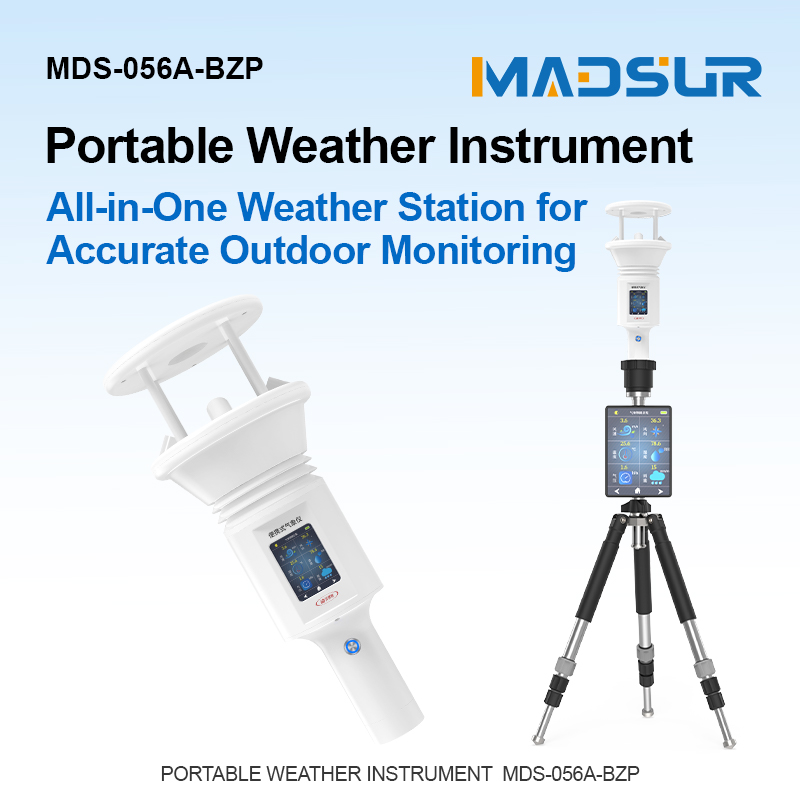

    The MDS-056A-BZP portable weather instrument is composed of a fully solid-state handheld weather station, a high-definition touchscreen, and a solar panel. It can accurately measure multiple meteorological elements such as wind speed, wind direction, temperature, humidity, air pressure, and rainfall. This device is lightweight and portable, featuring a high-capacity lithium battery and display screen as standard, and can be quickly set up on-site to meet immediate observation needs.

    E-mail:info@madsurgroup.com
    Send

    -Overview-

    The MDS-056A-BZP portable weather instrument is composed of a fully solid-state handheld weather station, a high-definition touchscreen, and a solar panel. It can accurately measure multiple meteorological elements such as wind speed, wind direction, temperature, humidity, air pressure, and rainfall. This device is lightweight and portable, featuring a high-capacity lithium battery and display screen as standard, and can be quickly set up on-site to meet immediate observation needs.

    In terms of overall design and usability, this product follows a modular, solid-state, and digital sensor concept. It can operate independently or be used in combination with tools such as a mobile app and computer-based data acquisition software, offering exceptional flexibility. Compared to traditional meteorological equipment, its highly integrated design successfully achieves the goals of "small size, multi-functionality, and high portability," providing greater convenience for outdoor meteorological observation operations and effectively improving on-site work efficiency.


    -Benefits-

    1. Equipped with a 0-60m/s ultrasonic wind sensor, housing made of aviation-grade aluminum, offering excellent anti-mold properties.

    2. Wide-temperature, high-brightness LCD, supporting simultaneous display of multiple elements.

    3. Multiple communication and networking methods, supporting rapid deployment and integration with third-party platforms.

    4. Large-capacity data storage, with Bluetooth functionality, enabling online data retrieval.



    Parameter

    Specification

    Dimensions

    750mm * 1900mm

    Main Unit Power Supply

    12V Lithium Battery (3700mAh)

    Operating Temperature

    -45℃ ~ 85℃

    Battery Life

    30 hours (low power consumption mode)

    Housing Material

    Aviation Aluminum

    Corrosion Resistance Grade

    C5-M

    Protection Rating

    IP67

    Surge Protection Level

    Level 4

    Digital Output Signal

    RS485

    Baud Rate

    9600 (Default)

    Wind Speed

    Range: 0m/s ~ 60m/s; Accuracy: ±3%; Resolution: 0.1m/s

    Wind Direction

    Range: 0° ~ 360°; Accuracy: ±2°; Resolution: 0.1°

    Temperature

    Range: -45℃ ~ 85℃; Accuracy: ±0.3℃; Resolution: 0.1℃

    Humidity

    Range: 0%RH ~ 100%RH; Accuracy: ±3%RH; Resolution: 0.1%RH

    Atmospheric Pressure

    Range: 300hPa ~ 1200hPa; Accuracy: ±0.5hPa; Resolution: 0.1hPa
