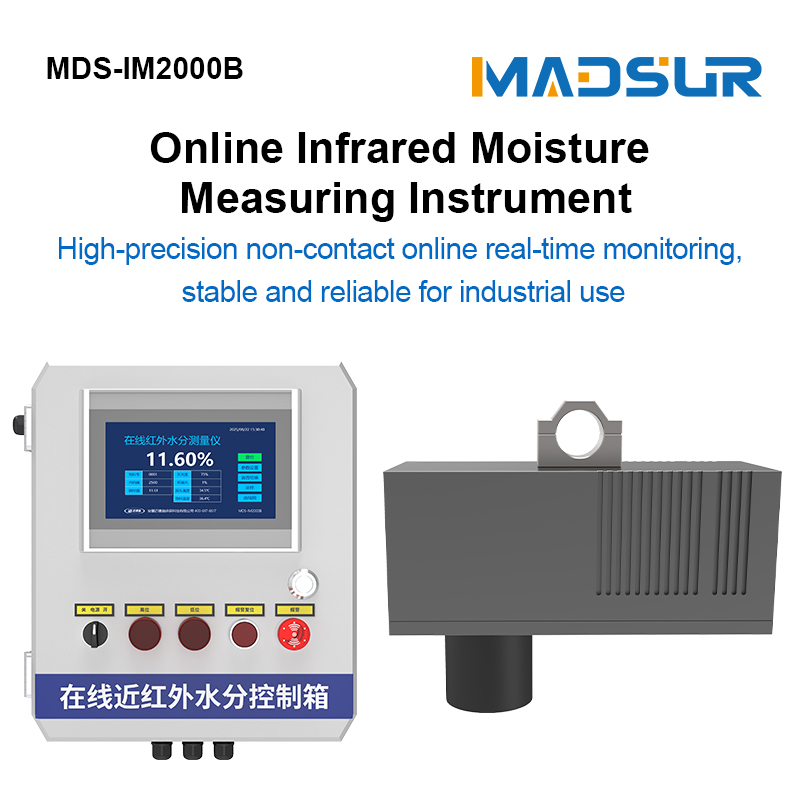

MDS-IM2000B Online Infrared Moisture Analyzer
-Overview-
The MDS-IM2000B online infrared moisture meter is a high-precision industrial online detection device based on advanced infrared measurement technology. This instrument can perform real-time, non-contact, continuous monitoring of the moisture content of materials during the production process, featuring measurement safety, accurate data, and reliable operation.
It is widely used in many industrial fields with strict requirements for moisture control, such as chemical, food, pharmaceutical, and building materials industries, helping enterprises achieve automation and intelligent upgrades in their production processes, effectively ensuring product quality stability, and improving production efficiency and energy utilization. Its robust and stable design can adapt to complex industrial environments, ensuring long-term reliable, continuous operation.
This product provides strong technical support for moisture detection in industrial production with its excellent performance, making it an ideal choice for optimizing process control and improving product quality.
-Benefits-
1. Employs advanced infrared measurement principles to achieve precise analysis of water molecule absorption bands, ensuring high accuracy of measurement results.

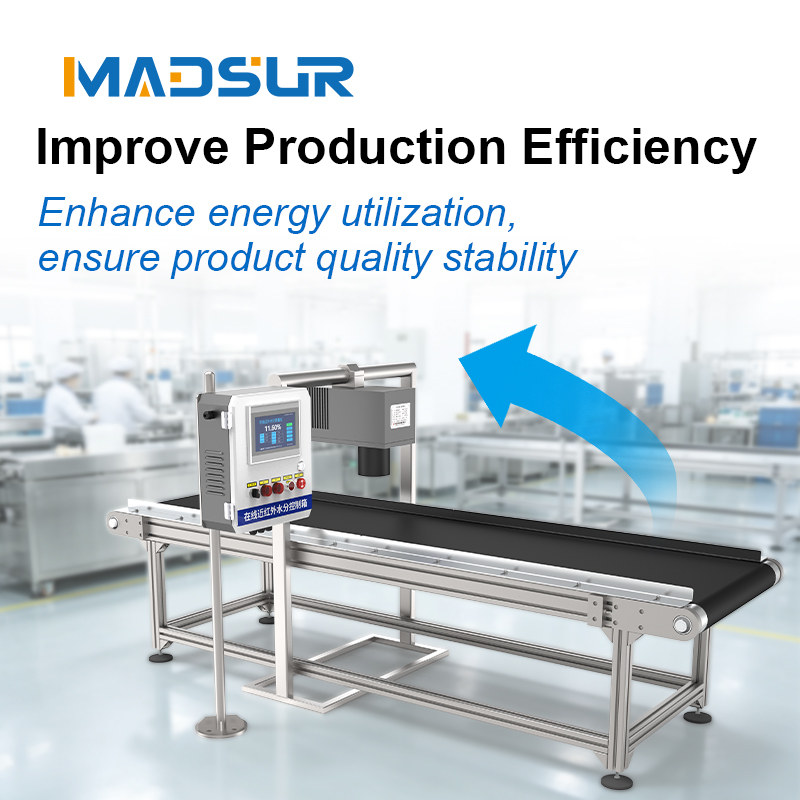

2. Enables continuous, real-time, non-contact measurement of moisture content in materials on the production line without interrupting the production process.
3. The measurement process avoids direct contact with materials, preventing sample contamination or instrument wear, ensuring long equipment lifespan and measurement safety.
4. The instrument possesses excellent repeatability and stability, providing accurate and reliable output data, offering dependable data for process control.
5. Rugged and stable design adapts to common complex operating conditions in industrial production, ensuring long-term stable operation in harsh environments.
6. Integrated intelligent functions facilitate automated and intelligent management of the production process, improving overall production efficiency.
7. Applicable to various industrial fields with strict moisture control requirements, such as chemical, food, pharmaceutical, and building materials industries.
8. Product design prioritizes safety and reliability, ensuring high stability and safety during continuous operation.

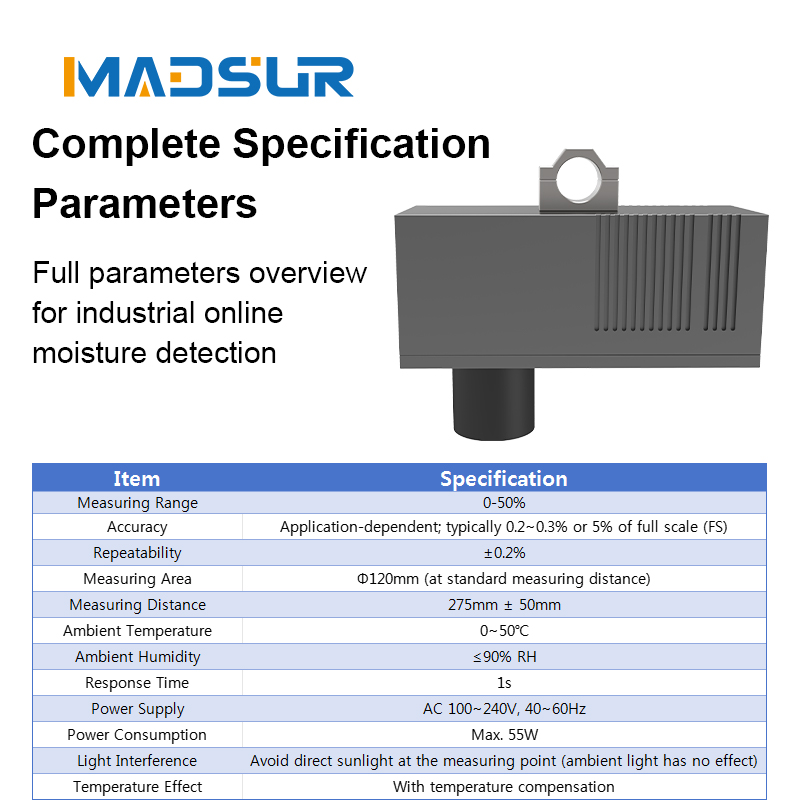

Technical parameters of the Probe | |
Item | Parameter |
Measurement Range | 0-50% |
Accuracy | Depends on the application, generally up to 0.2~0.3; or 5% of the full range |
Repeatability | 0.20% |
Measurement Area | Φ120mm (at standard measurement distance) |
Measurement Distance | 275mm ± 50mm |
Ambient Temperature | 0-50 °C |
Ambient Humidity | ≤ 90% |
Response Time | 1s |
Power Supply | AC100~240V, 40~60Hz (DC24V optional) |
Power | MAX 50W |
Light Source | 35W 12V halogen bulb (powered by voltage stabilization and soft start, bulb life up to 10,000h or more) |
Air Supply | Dry and clean compressed air at 0.2~0.8MPa, air flow 10~50L/min |
Light Interference | Direct sunlight should be avoided at the measurement position (ambient light intensity has no influence) |
Temperature Influence | With temperature compensation |
Dimensions | 400mm (length) × 175mm (width) × 170mm (height) |
Weight | 13.5kg |
Housing Standard | Aluminum alloy sealed box |
Ambient Temperature (Operating/Storage) | Operating temperature: 0 ~ 50 °C (0 ~ 80 °C with cooling plate); Storage temperature: -20~+65°C |
Transmission Distance | Maximum 500 meters |
IP Rating | IP50 (IP65 outdoor type optional) |
I/O Interface | 3-pin socket: Probe power interface; 7-pin socket: Probe signal line interface |
