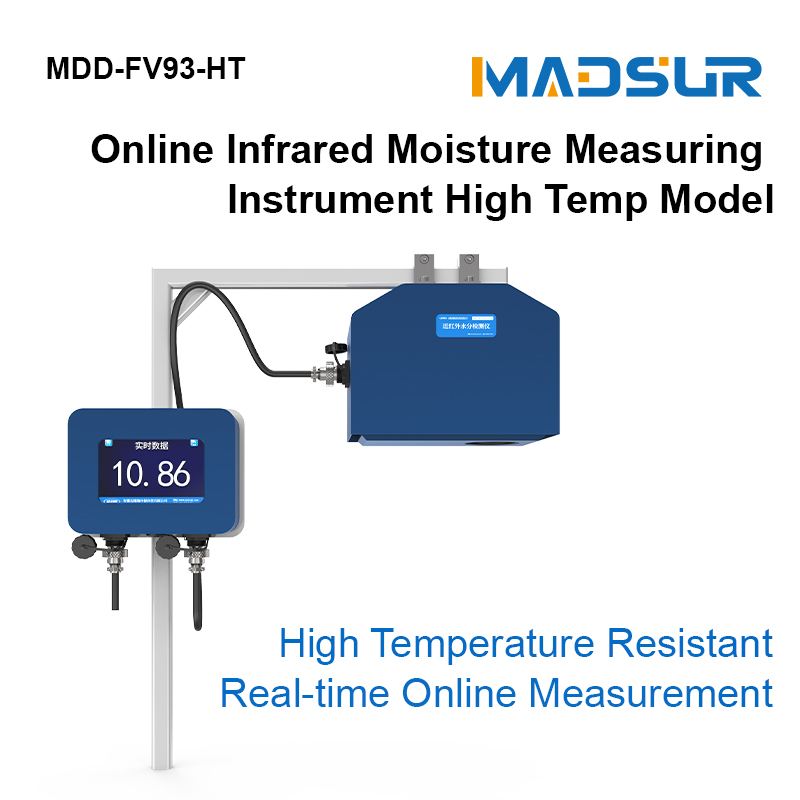

MDS-FV93-HT Online Near-Infrared Moisture Analyzer
-Overview-
Our company's HT series online near-infrared moisture analyzer (model: MDS-FV93-HT) uses a high-temperature resistant material for its housing, which has excellent thermal conductivity and high-temperature resistance. This protects the internal components of the near-infrared moisture analyzer from the effects of high-temperature environments, allowing it to operate normally in high-temperature environments.
-Installation Location-

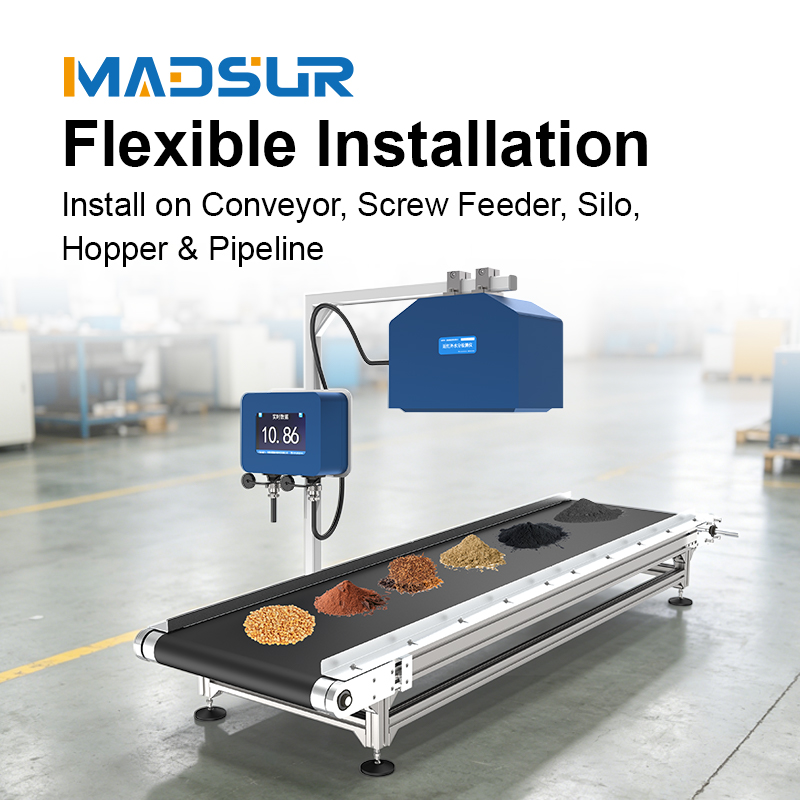

It can be installed above belt conveyors, screw feeders, silos, hoppers, funnels, or pipelines, etc., for real-time, dynamic, and high-precision moisture measurement of the measured medium.
-Benefits-
1. Powerful light source, high-efficiency optical system
2. High-speed motor
3. Suitable for measuring distances from 25cm to 50cm in height
4. Unaffected by ordinary light or other light sources, as well as dust, temperature, and humidity
5. Robust design, shock-resistant, and durable
Parameter | Value |
Model | MDS-FV93-HT |
Device Type | High-temperature type, suitable for use in high-temperature environments |
Operating Environment | -40°C~+125°C, 5%~99%RH |
Moisture Measurement Range | 0-100% (Maximum range limited by material's saturation moisture absorption) |
Moisture Accuracy | ±0.2% (Note: Variations in material composition may cause minor measurement errors) |
Temperature Measurement Function | Supported, 0~500°C (optional) |
Filter Range | 0-60s |
Probe Glass | Made of high-borosilicate quartz glass, anti-contamination & anti-condensation |
Measurement Channels | 50 |
Power Supply | 220VAC/50Hz |
Light Source | Imported high-efficiency light source |
Protection Rating | IP65 |
Illumination Diameter | 60-75mm |
Communication Methods | RS485/4-20mA/RS232/LAN/LoRa wireless |
Measurement Height | 350mm ± 100mm |
Curve Fitting | Supports automatic calibration with over 10 moisture curves |
