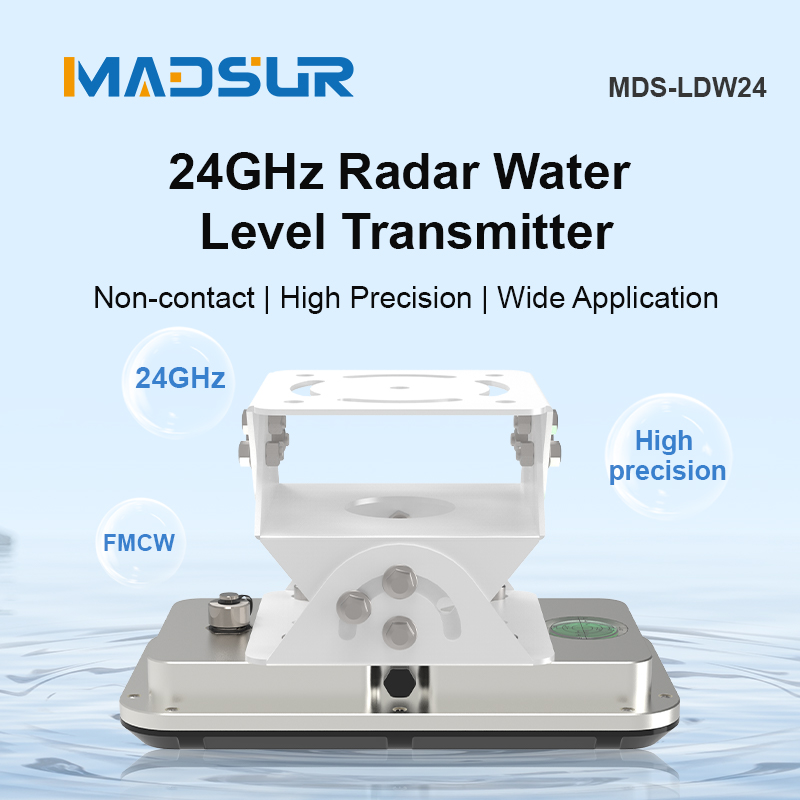

MDS-LDW24 Non-contact Radar Water Level Gauge

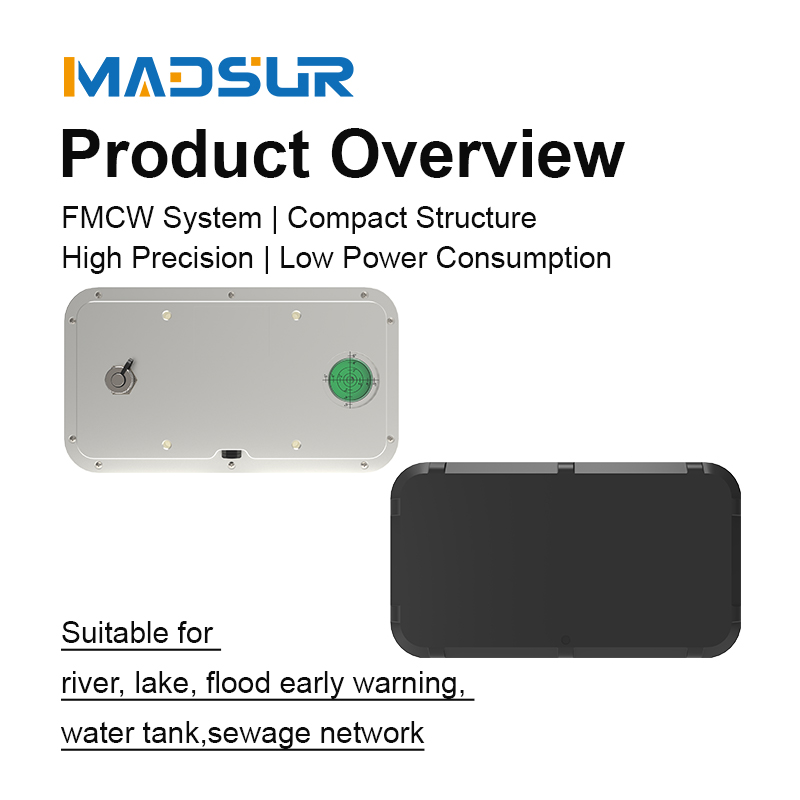

Millimeter-wave radar employs FMCW mode, featuring a non-contact installation design, small size, and compact structure. It boasts high accuracy, low power consumption, and strong anti-interference capabilities, making it suitable for water level monitoring in lakes, rivers, flash flood warning systems, reservoirs, and sewage pipe networks.

E-mail:info@madsurgroup.com

Send

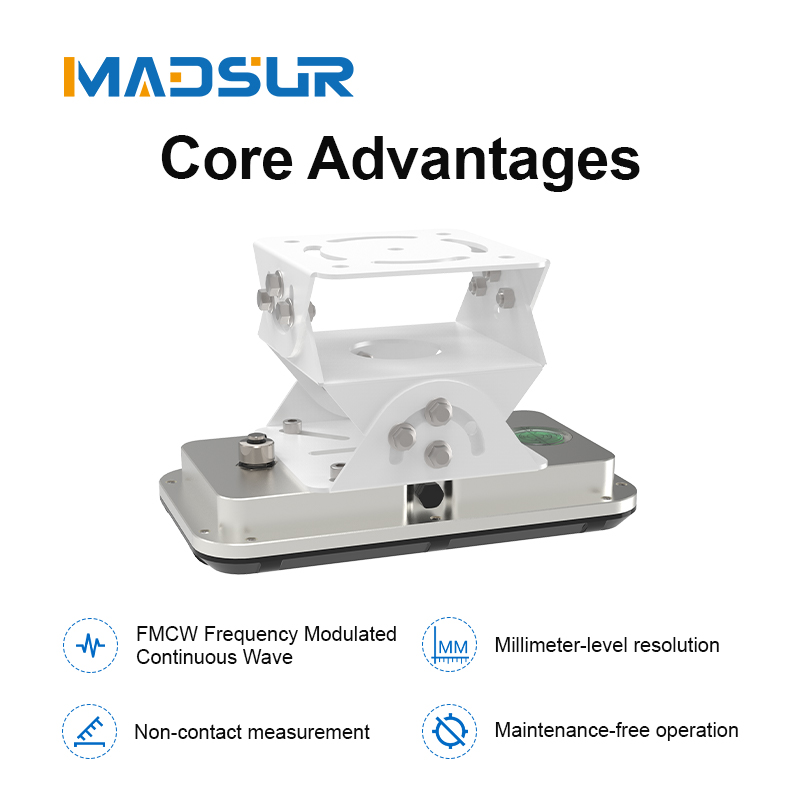

-Benefits&Features-

1. FMCW (Frequency Modulated Continuous Wave) ranging mode

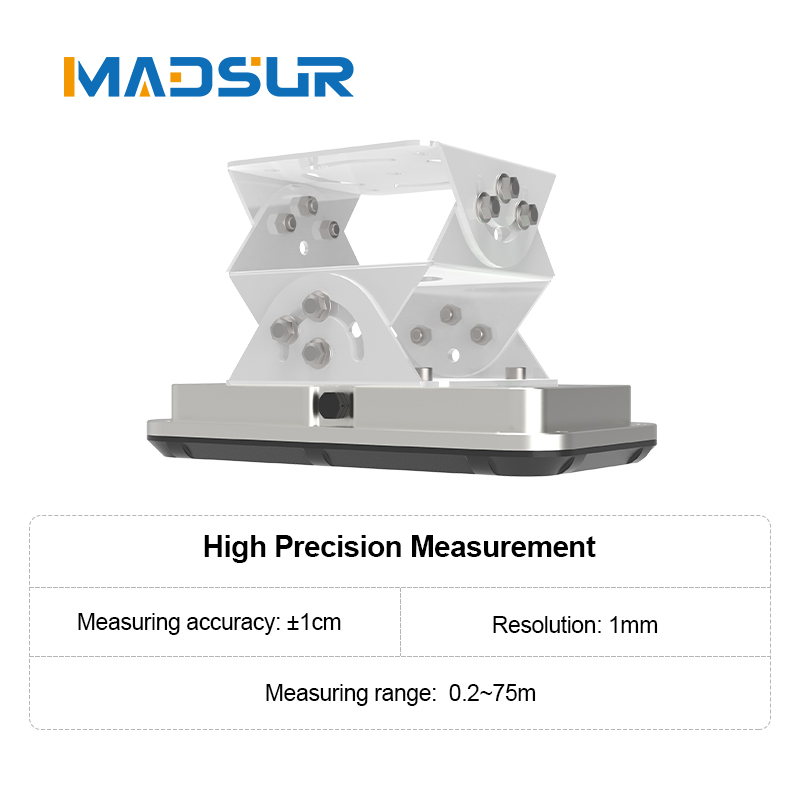

2. Distance measurement accurate to millimeters

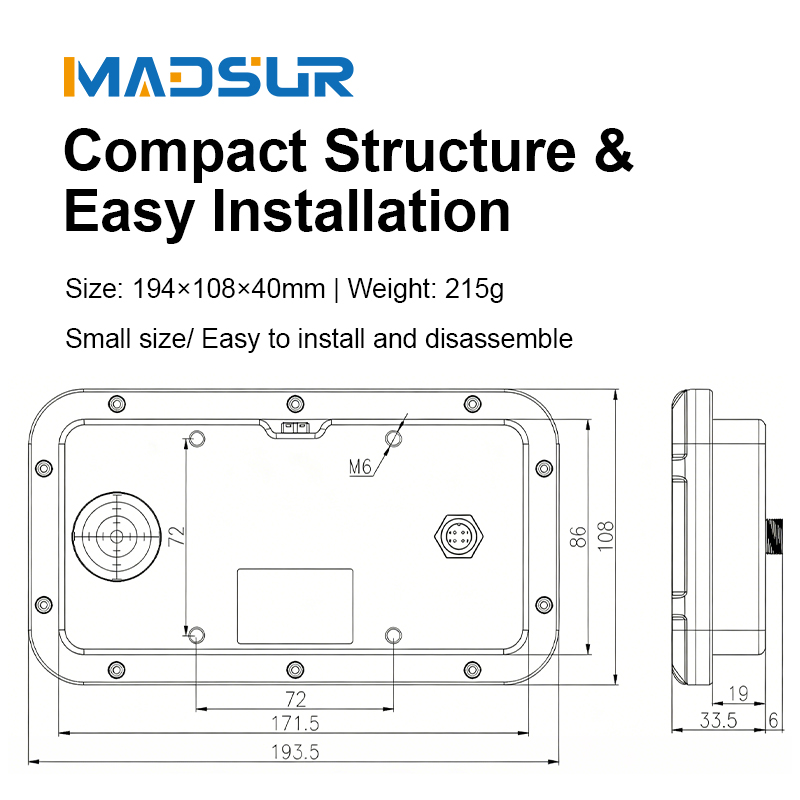

3. Small size, easy and quick installation, and disassembly

4. Non-contact radar measurement system, effectively reducing interference in harsh environments and achieving maintenance-free operation

5. Compact and integrated design, improving equipment stability and reliability

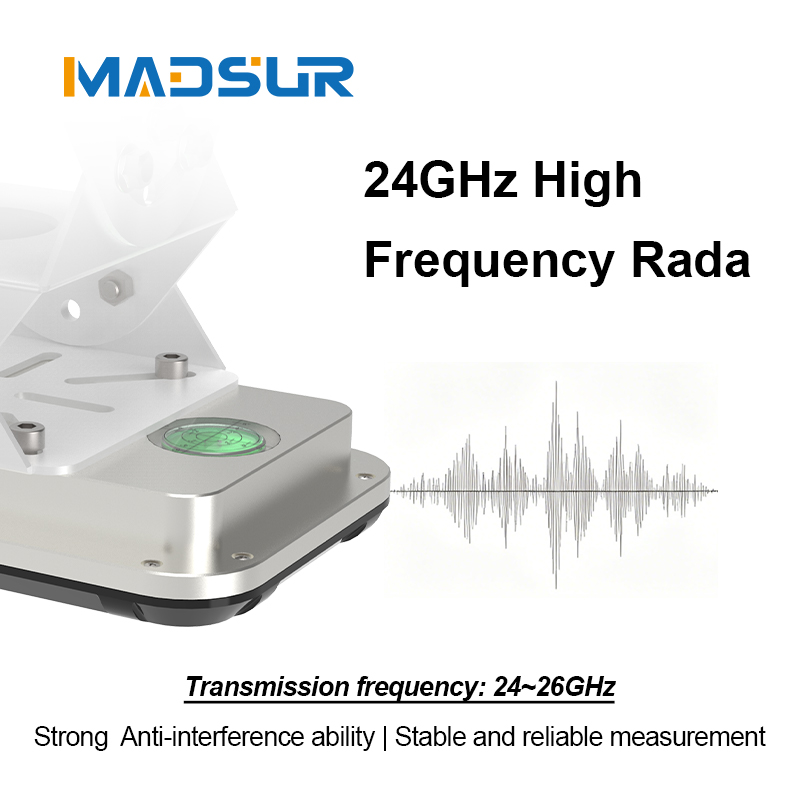

6. The radar operates at 24GHz, with a maximum measurement range of 75 meters. The maximum detection distance may vary depending on the object's RCS.

7. For customers requiring full-range high precision, please test the product against a high-precision product and provide the test data. We can calibrate based on the test data, achieving the required precision.
