MDS-PLC Siemens Quantitative control cabinet

-Overview-

Accurate fluid dosing & batching solution for chemical, water, oil, and beverage filling industries
This intelligent PLC quantitative control box supports up to 6 independent flow channels for simultaneous batching.
Equipped with a touchscreen batching meter, each channel features dedicated start, pause, and stop buttons for separate program control. Built-in cabinet lock ensures operational safety.
Stable pulse signal input (DC24V, max 5000Hz), reliable relay output, high-precision accumulation chip delivers long service life and consistent dosing accuracy. Custom channel numbers and relay specs are available on request.

-Benefits & Features-

1. Step valve control to reduce water hammer impact

2. Switchable measurement units freely

3. Low-material shutdown & alarm function

4. Batch cycle automatic dosing mode

5. Real-time production data storage

6. Standard RS485 communication for system interconnection

7. Manual independent control of pumps & valves

8. Compatible with two types of flow input signals

9. Dual operation: touch screen + physical key buttons

-Wide Application Scenarios-

Realize automatic metering & dosing for multiple industries:
Liquid quantitative filling
Fixed volume water feeding for raw material mixing
Precision water proportioning for dough kneading
Constant automatic water discharge from the pipeline
Multi-channel simultaneous batching
Automatic formula proportion control for multiple materials

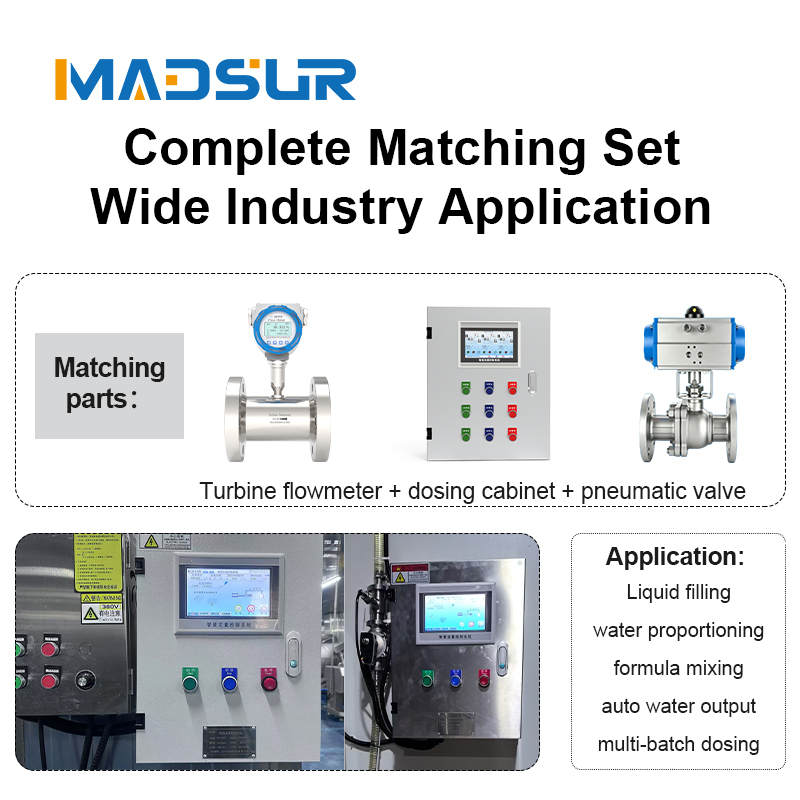

Complete Matching Assembly, Ready to Use

Full set integrated metering control package for quick commissioning:
Turbine Flow Meter + PLC Quantitative Control Cabinet + Pneumatic Ball Valve
Automatic linkage for accurate measurement; valves open/close under cabinet program control, featuring low measuring error, easy operation & low maintenance cost.

-Main parameters-
