MDS-WL Series Turbine Flowmeter

-Overview-

The MDS-WL series turbine flowmeters operate on the torque balance principle and belong to the category of velocity-type flow instruments. With a simple, lightweight structure, they feature high accuracy, excellent repeatability, fast response, and easy installation and maintenance. They are widely used in industries such as petroleum, chemical, metallurgy, water supply, and papermaking, and are suitable for measuring low-viscosity liquids free of impurities like fibers or particles in closed pipelines, and are non-corrosive to stainless steel, alumina ceramics, and hard alloys.

These flowmeters can be paired with display instruments with special functions to realize quantitative control, over-limit alarm, and other functions. They have an Exd IIC T6 Gb explosion-proof rating, allowing use in hazardous explosive environments. For liquids with a viscosity greater than

5×10-⁶m2/S at operating temperature, calibration with the actual liquid is required before use.

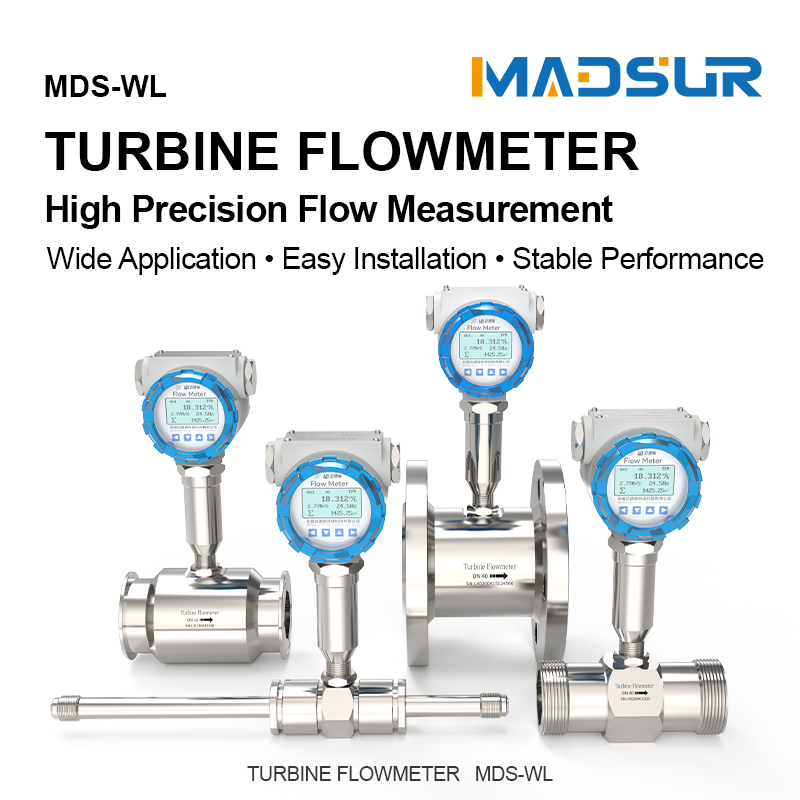

The product offers multiple connection methods, including flange connection, threaded connection, wafer connection, and clamp connection, with a nominal diameter range covering DN4 to DN200 to meet installation requirements of different working conditions. It supports a variety of output signal types, including pulse signals, 4~20mA analog signals, RS485 communication, or HART protocol. The working power supply supports an external +24VDC or a built-in lithium battery power supply. The enclosure protection rating reaches IP65 or higher, and signal interfaces adopt Hirschmann connectors or aviation plugs. With a rugged and durable overall structure and easy maintenance, the MDS-WL series flowmeters combine reliability and flexibility, making them the ideal choice for industrial process measurement and control.

-Benefits&Features-

1. Based on the torque balance principle, it features a compact structure, fast response, and easy installation and maintenance. The repeatability index is clearly correlated with the accuracy class, ensuring stable and reliable measurement.

2. Suitable for liquids free of impurities such as fibers and particles, and non-corrosive to stainless steel, alumina, and hard alloys. It can be used directly when the viscosity at operating temperature is less than 5×10-⁶m2/S

3. With Exd IIC T6 Gb explosion-proof rating, it can operate safely in explosive gas environments, meeting the stringent explosion-proof application requirements of industries such as petroleum and chemical.

4. Available with flange, threaded, wafer, and clamp connections, covering nominal diameters from DN4 to DN200. The corresponding valve body structure can be flexibly selected according to the pipeline configuration and installation space.

5. Supports pulse, 4-20mA, RS485, and HART protocol outputs. It can be powered by an external +24VDC supply or a built-in lithium battery, adapting to the requirements of different control systems.

6. Specific upstream straight pipe lengths are required when different flow obstructions are present. For example, a 90° elbow requires 20D of straight pipe upstream and 5D downstream to ensure a stable flow velocity distribution for accurate metering.

-Main technical parameters-

-Flow range and pressure rating-
