MDS-Y016 Oil Moisture Sensor

This Oil Moisture Sensor can monitor parameters such as free water content and temperature in lubricating oil in real time, addressing the challenge of temperature compensation in moisture content detection. By continuously monitoring the condition of the oil, it improves condition-based maintenance efficiency, optimizes oil change intervals, and reduces reliance on offline analysis.

E-mail:info@madsurgroup.com

Send

Features& Benefits

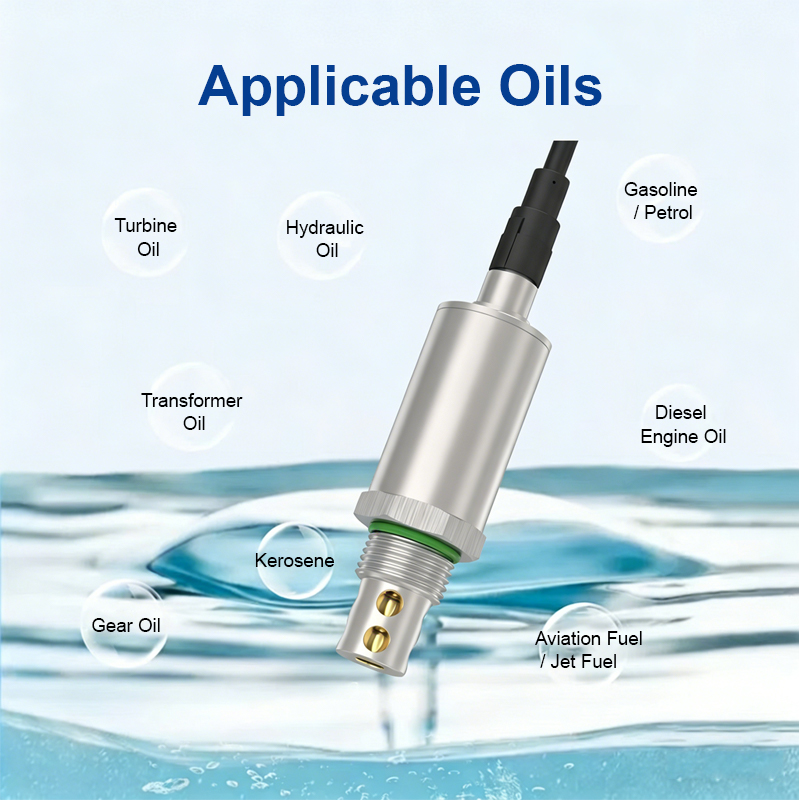

1. Wide application range, suitable for all lubricants
2. Big data oil analysis algorithm helps customers solve diagnostic problems, and includes built-in health index analysis
3. 24-hour uninterrupted monitoring, providing timely feedback on oil status
4. Strong compatibility, compatible with CAN-J1939 and RS-485-Modbus RTU
5. Suitable for monitoring high-speed flows, suitable for oils of varying viscosities, and durable
6. Compact structure, easy to install, and customizable to suit different oil pipe sizes.
7. Simultaneous measurement of multiple parameters promptly detects water contamination in lubricating oil, helping users filter and treat any water ingress, preventing equipment failures caused by water contamination.

Technical parameters

Model		MDS-Y016
Test Parameters		Free Water Content
Range (Absolute Accuracy)		0~5% (±0.1%), 5% to inversion point (±2%) 0~100%
Temperature Stability		0.01% water/°C
Resolution		100 ppm (0.01%)
Temperature Measurement Range		-40~120°C
Operating Temperature		-40~85°C; Permissible Oil Temperature: -40~120°C
Storage Temperature		-40~85°C
Output Signal		Digital Signal: RS485 MODBUS-RTU (RS232 optional); Analog Signal: 4-20mA, 0-20mA
Pressure Range		Maximum Current: 30 bar
Standards Complied		CE Certification: EN61326-1, EN61326-2-3, ICES-003 Class B
