-Overview-

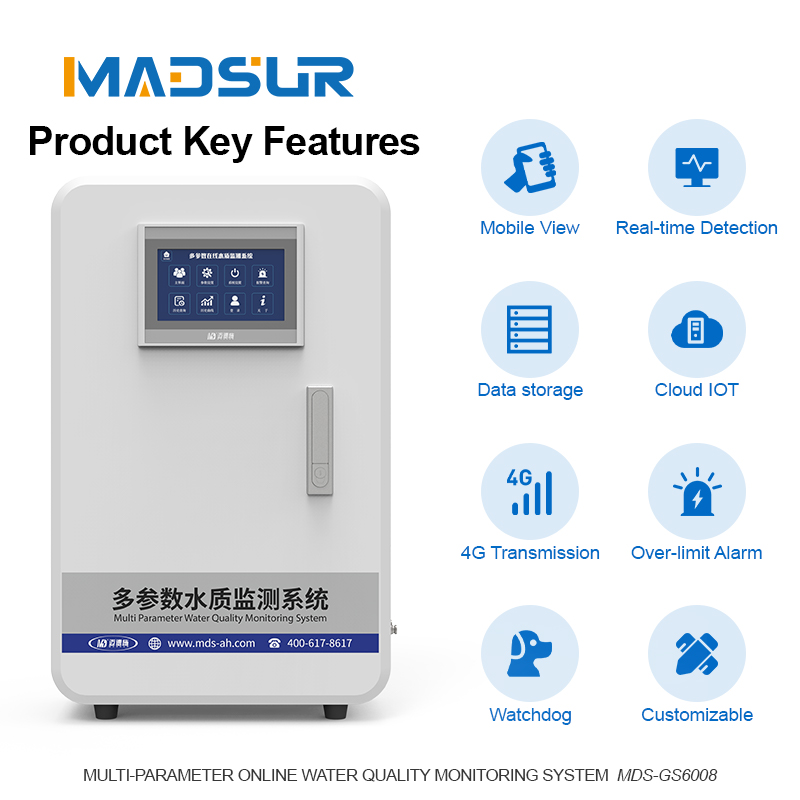

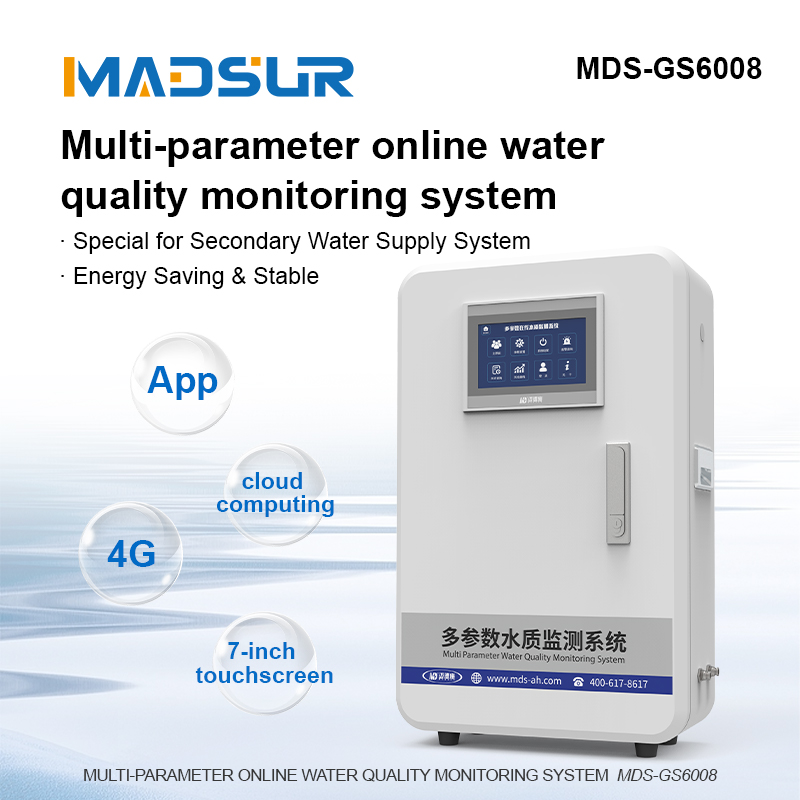

A professional multi-parameter water quality analyzer tailored for secondary water supply management. Powered by IoT and high-sensitivity digital electrode technology, it guarantees accurate, real-time data acquisition. Its dedicated flow cell and 7-inch HD display facilitate intuitive operation and simultaneous parameter analysis. Combined with efficient data logging and alarm functions, it is the ideal solution for maintaining optimal water quality in secondary supply systems.

-Benefits & Advantages-

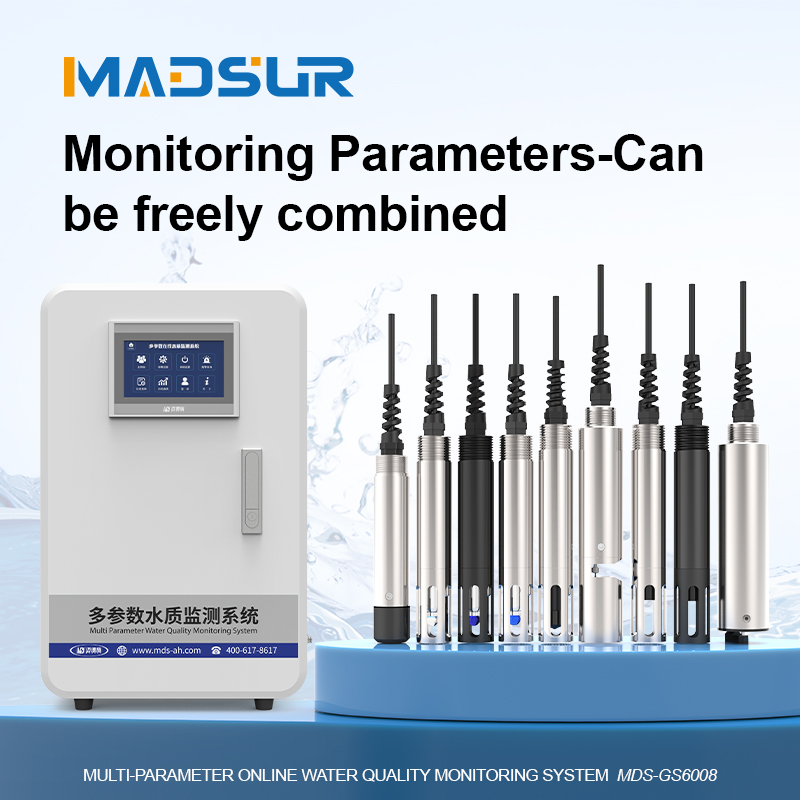

1. Multi-Parameter Simultaneous Measurement
Measures multiple water quality indicators at once, boosting detection efficiency and cutting manual labor costs.
2. Fully Digital Electrode Technology
Equipped with fully digital electrodes for exceptional sensitivity and long-term stable, accurate detection.
3. IoT & Smart Sensor Integration
Integrates advanced sensor and IoT technologies for real-time online monitoring and remote data access.
4. Proprietary Flow Cell Design
Features a custom-engineered flow cell to ensure stable, accurate water sample testing and extended service life.

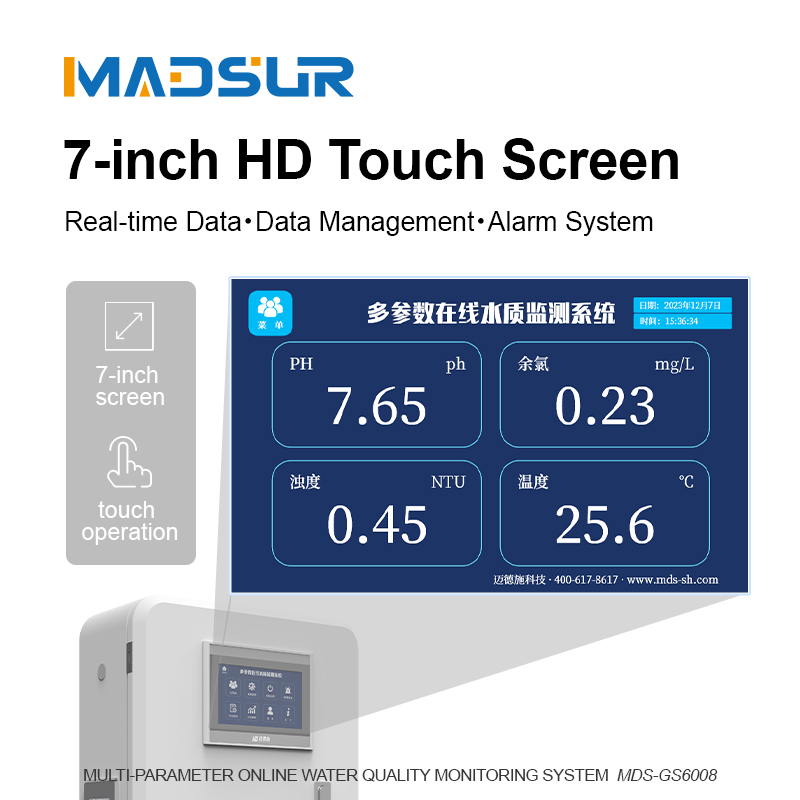

5. 7-Inch HD Display for Intuitive Operation
Boasts a 7-inch HD touchscreen for clear, easy on-site operation, data viewing, and device calibration.
6. Real-Time Monitoring & Intelligent Alarm System
Delivers 24/7 real-time monitoring with instant alarms for abnormal water quality, safeguarding water safety.
7. Centralized Data Management
Supports centralized data logging, storage, and traceability, meeting compliance and operational needs.
8. Wide Range of Application Scenarios
Ideal for secondary water supply, swimming pools, drinking water systems, aquaculture, and more.

Test Parameters | Specification Parameters |
PH | |
Measuring Range | 0.00~14.00pH |
Resolution | 0.01pH |
Accuracy | < 0.1pH |
Residual Chlorine / Ozone / Chlorine Dioxide / Total Chlorine / Sodium Hypochlorite | |
Measuring Range | 0-5 / 20mg/L |
Resolution | 0.001mg/L |
Accuracy | ±3% (DPD comparison error ±10% or ±0.05mg/L, whichever is greater) |
Conductivity / Salinity / TDS | |
Measuring Range (Conductivity) | 0~10,000μS/cm |
Resolution (Conductivity/Salinity) | 0.1μS/cm |
Accuracy (TDS) | < 0.5% |
Turbidity | |
Measuring Range | 0~20NTU |
Resolution | 0.0001NTU (<1NTU) ; 0.01NTU (≥1NTU) |
Accuracy | ±0.02NTU or ±2% (whichever is greater) |
Colority | |
Measuring Range | (0-500)Hazen, (0-500)NTU |
Resolution | 0.5Hazen |
Accuracy | ±2%FS |
Temperature | |
Measuring Range | 0-60℃ |
Resolution | 0.1℃ |
Accuracy | ±0.3℃ |
Multi-Parameter Online Water Quality Monitoring System MDS-GS6008 | |
4-20mA Current Output (Optional) | 4 Channels |
Working Conditions | Ambient Temperature: 5-40℃, Relative Humidity: <90%RH |
AC Power Supply | 186~240V, 50/60Hz |
Relay Output | Load: AC 220V 10A |
Display Resolution | 7-inch Touch Screen Display |
Dimensions | 450*205*700mm (L*W*H) |
